Automatic programming indexing table
Possibility to select various programming steps.
About this machine

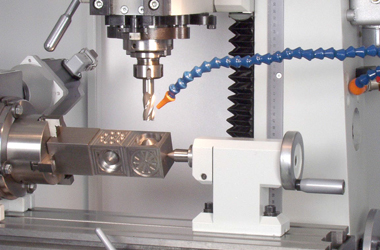

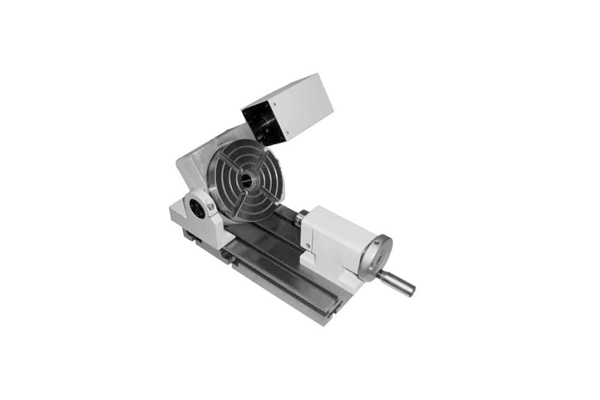

Possibility to select various programming steps. The working tact is afoot – driven. Computer programming input similar to DIN 66025. Powered by a step motor. Dislocation “O” of a table is possible in any position. Completed with driving, keyboard, foot and STOP disconnector. Allows using in a horizontal and vertical position. Optional: Tail-stock with a hard center and centering device, magnetic brake. Supplied together with: step motor, driving, keyboard, hand drive control panel with directions and STOP control switchers. Optional: Tailstock, Hard center MK 2, Centering device for the chuck, 3 or 4 dog chuck, Fixing flange for the chuck. Indexing table could be adjustable to the CNC machine and to drive with the M-Function.
Technical specifications
| Diameter of working surface: | 150 mm |
|---|---|
| Height of horizontal working surface: | 90 mm |
| Vertical height between axes: | 100 mm |
| Transmission: | 1 : 90 |
| Clamping of the bars: | over 4 T-shape slots of 10 mm |
| Weight | approximately 24 kg |
