Operation – Direct division – Indirect division
Simply top For handicrafts, experiments, repair shops, hobby, etc.
About this machine

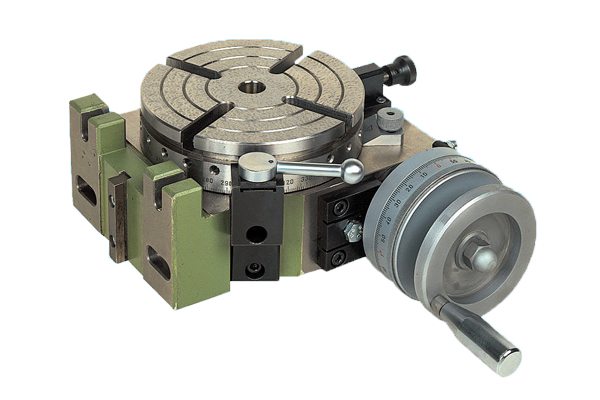

Simply top For handicrafts, experiments, repair shops, hobby, etc. The Transmission is 1: 90 and permit to fulfill any operations with the table. The accuracy of divisions 1 minute. New. Direct division through 24 holes. It is possible to make accurate direct divisions 2-3-4-6-8-12 and 24 without worm-gear-driven. The brake lever rigidly fixes the table for the reason of heavy milling works. The wheel with scale is a possible easy change to the division discs with scissors. In that case is very easy to make complicated divisions for machining of gear wheels. Long bars for machining is possible to fix by tail-stock. Complete set: table with tail-stock, strong center MK 2 centering accessory for turning chuck, three division discs. Optional accessory: 4 dog chuck with fixing flange.
Technical specifications
| Working surface diameter: | 150 mm |
|---|---|
| Horizontal height of working surface: | 100 mm |
| Vertical height of centers: | 100 mm |
| Transmission: | 1 : 90 |
| Accuracy of scale 9 divisions 0: | 1 minute |
| Fixing: | 4 x T-shape slots 10 mm |
| Direct division: | 24 hales each 15 minutes |
| Division discs | |
|---|---|
| No. 1 | 26/28/30/32/34/37/38/39/41/43/44/46/47/49/51/53/57/59 |
| No. 2 | 61/63/67/69/71/73/77/79 |
| No. 3 | 81/82/87/89/91/93/97/99 |
| Weight: | 20.1 kg |
| Tail-stock: | 100 mm matched up; 100 mm +- 0.01 |
| Hole: | MK 2 |
