mod. D-25

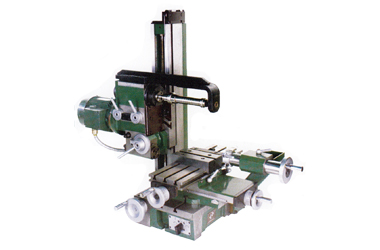

Desk-top Drilling – Boring – Milling Machine
The machine is designed for marking of templets, milling with cotter mills, gear-tooth endmills, side mills, threading, drilling, turning, reaming and boring of metal workpieces having mass up to 50 kg.
300 (11.8"x7.9)longitudinal(X)
200 (7.9")cross(Y)
100 (3.9")Spindle max travel
ą45Spindle-head slew, deg
Overview
About this machine
The machine is designed for marking of templets, milling with cotter mills, gear-tooth endmills, side mills, threading, drilling, turning, reaming and boring of metal workpieces having mass up to 50 kg. A cantabile rotary indexing 250 mm table may be delivered with the machine in addition to the regular set of accessories and tools and DRO.
Technical specifications
| Table max travel, mm | |
|---|---|
| longitudinal(X) | 300 (11.8"x7.9) |
| cross(Y) | 200 (7.9") |
| Spindle max travel, mm | 100 (3.9") |
| Spindle-head slew, deg | ą45 |
| Drilled max diameter, mm | 20 (0.8") |
| Bore max diameter, mm | 150 (5.9") |
|---|---|
| Tap max diameter, mm | M12. |
| Spindle rotation speed, rpm | 100-1450 |
| Number of speeds | 6 |
| Overall dimensions (WxHxL), mm | 1020x1015x1280 (40.2"x40"x50.4") |
| Mass, kg | 350 (777 lb) |
